Your powerful and versatile
tool for everyday

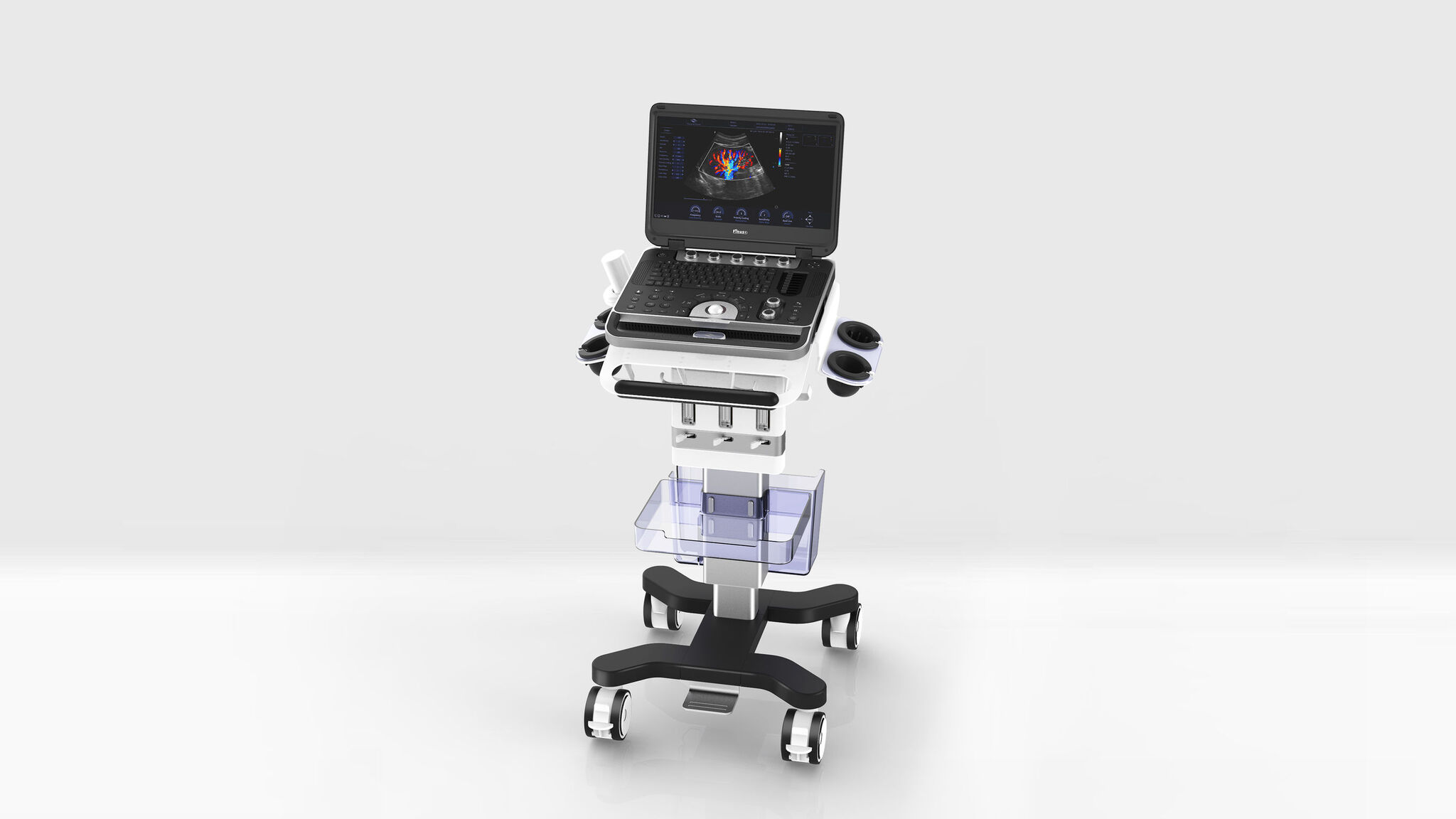

Finus 50’s unique imaging technologies and transducer
technology provide users with detailed images to
enhance thier diagnosis confidence.

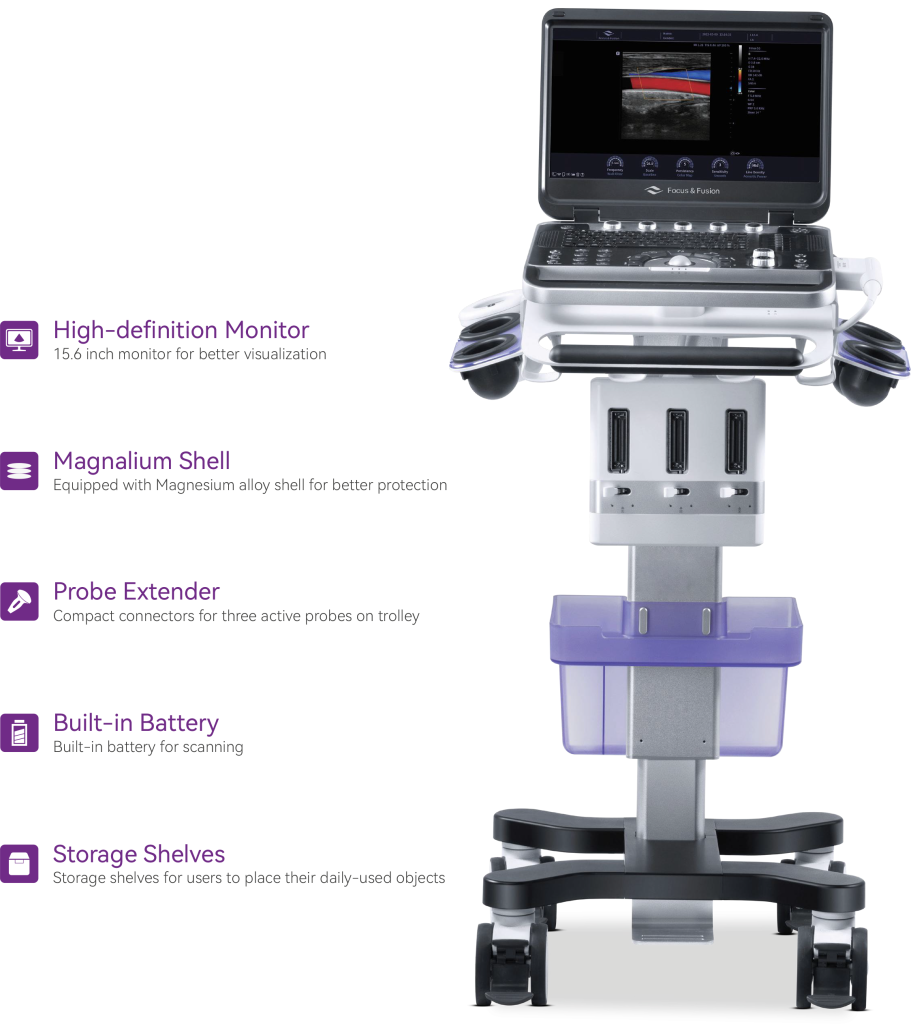

POWERFUL AND VERSATILE
Hi Platform
“Hyper Imaging” is the 2nd generation beam forming technology. Multiple frames are acquired on every launch sequence for more detailed information.
Hi Flow
Hi Flow uses the end-to-end adaptive blood flow algorithm,
which can automatically choose the optimal data combination way after multiple times calculation, greatly improve the overall performance of blood flow.
SNS+
Automatically detect and suppress the speckle noise based on multi-dimension algorithm. Acquire and enhance tissue details from different directions, easily capture sub-millimeter level lesion or large organ boarder.
OMG
The electromagnetic guard processing of whole system is to prevent the ultrasonic signal from electromagnetic interference during the transmission process, to ensure the stability of the signal transmission, so as to obtain a clearer image.

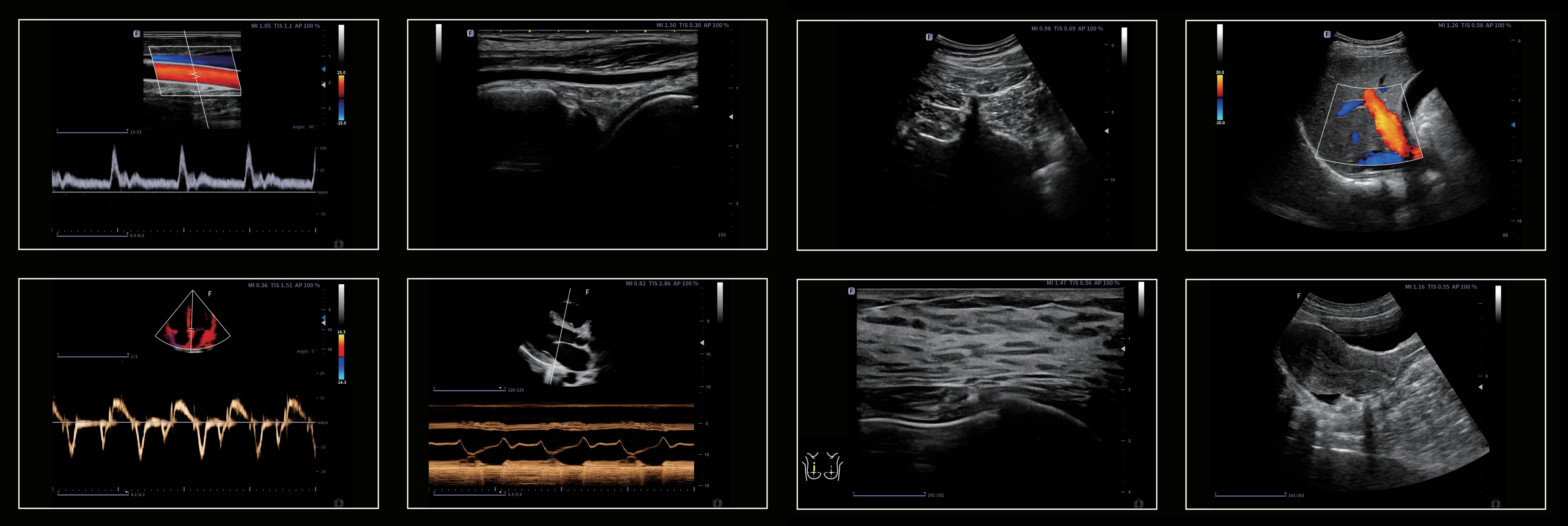

Excellent Clinical Images
Advanced functions
Elastography
Real time elastography is a new noninvasive and painless technique that can help determine the hardness of organs and other structures such as breast, thyroid. Elastic imaging provides users with dynamic visual information and displays the rigidity of organs, which is helpful for direct and quantitative diagnosis and treatment.
eBiopsy+
The image of the puncture needle is enhanced by the deflection of the acoustic beam including needle enhancement, needle tip red rendering, virtual needle passage and scale line, supporting auto steering.
Tissue Doppler Imaging
Tissue Doppler Imaging (TDI) is a robust and reproducible echocardiographic tool that employs the Doppler effect to assess muscle wall characteristics throughout the cardiac cycle including velocity, displacement, deformation, and event timings. It has permitted a quantitative assessment of both global and regional function and timing of myocardial events.
ExView
Increase scan range for probes; Get more complete information.
Bonding technique
By uniform bonding process, adhesive to interconnect ceramic and lead is well controlled (max thickness: 1μm) to improve performance uniformity among elements.
Triple matching layers
Higher sensitivity and wider bandwidth can be achieved through triple matching layers.
Micro-elements cutting
Byﾠmicro-elements cutting,ﾠone element is cut into several sub-elements to increase sensitivity and bandwidth of transducer.
Transducers
Convex C5-1
Applications: Abdomen, Obstetrics, Gynecology
Micro-convex MC10-3
Applications: Pediatrics, Cardiology
Intracavitary EC9-4
Applications: Obstetrics, Gynecology, Urology
Linear L12-4
Applications: Small parts, Vascular, MSK
Linear L17-5
Applications: Small parts, Vascular, MSK
HD Linear L13-3
Applications: Small parts, Vascular, MSK, Breast
Phased Array P5-2
Applications: Cardiology, Abdomen, TCD
Phased Array P8-2
Applications: Abdomen, Pediatric cardiology
